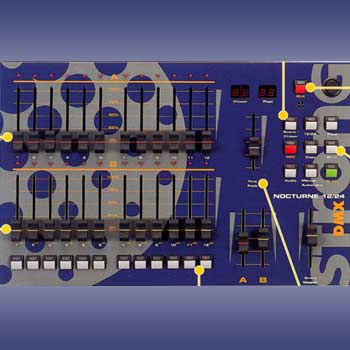

Performance and versatility of Nocturne 12/24 DMX make it the ideal console for small-scale performances. It can control up to 24 channels, with a memory storage capacity for all the scenes of a performance (144 scenes available distributed over 12 pages of 12 scenes each one).
Two manual presets of 12 or 24 channels.
Up to 12 chasers of a maximum of 64 steps each one may be recorded. They may be played back automatically either at speed shown on the Time potentiometer or following the background music by built-in electret microphone. Sequential chasers are also available, step by step playback of chasers or manual mode consists of throwing each scene by pushing the Copy key (charge is made instantly or in a time stipulated through the Fade potentiometer)
Time fade adjustment from 0.1 sec. to 60 sec. through potentiometer.
Black out for instantly blocking all signal outputs.
Blind mode to reprogram or examine one scene while the outputs to the dimmers remain unchanged.
In Play position the twelve bottom potentiometers become scene submasters, allowing several scenes to be played back at the same time.
Main technical features
Power absorbed
10W
Power Supply
Single-phase 230V 50Hz
Main safety fuse
5x20 0,5A.
Digital output signal
DMX-512 (1990)

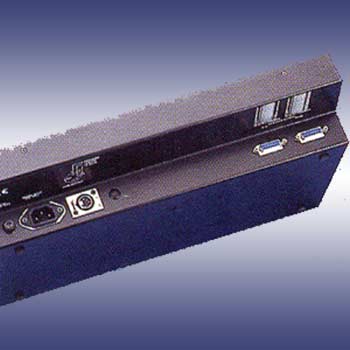

Digital output connector
XLR-5
Analogue output signal
0/+10V, 24 outputs
Analogue output connectors
2xSUBD-15
Exterior finish
Blue and black colours
Weight
5 Kg.
Dimensions
415x266x80 mm 4 unidades rack 19"
Brand: Strong Reference: 24000046 Catalog: Download Specifications: Download User manual: Download Statement of compliance EC: Download
